Which of the following are functions of NVRAM? (Choose two.)
stores the routing table
retains contents when power is removed
stores the startup configuration file
contains the running configuration file
stores the ARP table
2
A network technician is attempting to add an older workstation to a Cisco switched LAN. The technician has manually configured the workstation to full-duplex mode in order to enhance the network performance of the workstation. However, when the device is attached to the network, performance degrades and excess collision are detected. What is the cause of this problem?
The host is configured in a different subnet from the subnet of the switch.
There is a duplex mismatch between the workstation and switch port.
The switch port is running at a different speed from the speed of the workstation NIC.
The host has been configured with a default gateway that is different from that of the switch.
3
What is the correct command sequence to configure a router host name to "LAB_A"?
Router> enable
Router# configure terminal
Router(config)# hostname LAB_A
Router> enable
Router# hostname LAB_A
Router> enable
Router# configure router
Router(config)# hostname LAB_A
Router> enable
Router(config)# host name LAB_A
4
Refer to the exhibit. Which password or passwords will be encrypted as a result of the configuration that is shown?
virtual terminal only
enable mode only
console and virtual terminal only
enable mode and virtual terminal
only the service password
all configured passwords
5
Which function is a unique responsibility of the DCE devices shown in the exhibit?
transmission of data
reception of data
clocking for the synchronous link
noise cancellation in transmitted data
6
How does the SYST LED on the catalyst 2960 switch indicate a POST failure?
blinks rapidly amber
blinks rapidly green
steady amber
steady green
7
Which tasks can be accomplished by using the command history feature? (Choose two.)
View a list of commands entered in a previous session.
Recall up to 15 command lines by default.
Set the command history buffer size.
Recall previously entered commands.
Save command lines in a log file for future reference.
8
Which of the following statements are true regarding the user EXEC mode? (Choose two.)
All router commands are available.
Global configuration mode can be accessed by entering the enable command.
A password can be entered to allow access to other modes.
Interfaces and routing protocols can be configured.
Only some aspects of the router configuration can be viewed.
9
Which mode will a configured router display at login?
global configuration mode
setup mode
ROM monitor mode
user EXEC mode
10

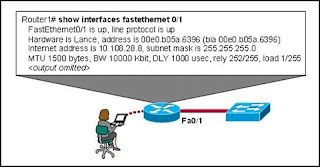

Refer to the exhibit. From the router console, an administrator is unable to ping a Catalyst switch that is located in another building. What can the administrator do from her location to check the IP configuration of the attached switch?
Open an SDM session with the switch from her desktop.
Telnet to the switch from the router console.
Use the show cdp neighbors detail command from the router console.
The administrator must go to the switch location and make a console connection to check these settings.
11
Refer to the exhibit. Which series of commands will enable users who are attached to Router1 to access the remote server?
Router1(config)# interface S0/0/0
Router1(config-if)# ip address 64.100.0.129 255.255.255.252
Router1(config-if)# clock rate 64000
Router1(config-if)# no shutdown
Router1(config)# interface S0/0/0
Router1(config-if)# ip address 64.100.0.125 255.255.255.252
Router1(config-if)# no shutdown
Router1(config)# interface S0/0/0
Router1(config-if)# ip address 64.100.0.125 255.255.255.252
Router1(config-if)# clock rate 64000
Router1(config-if)# no shutdown
Router1(config)# interface S0/0/0
Router1(config-if)# ip address 64.100.0.129 255.255.255.252
Router1(config-if)# no shutdown
12
Refer to the exhibit. A company always uses the last valid IP address in a subnetwork as the IP address of the router LAN interface. A network administrator is using a laptop to configure switch X with a default gateway. Assuming that the switch IP address is 192.168.5.147/24, what command will the administrator use to assign a default gateway to the switch?
X(config)# ip default-gateway 192.168.5.254
X(config)# ip gateway 192.168.5.1
X(config)# ip route 0.0.0.0 0.0.0.0 192.168.5.1
X(config)# ip default-route 192.168.5.1
X(config)# ip route 192.168.5.254 255.255.255.0 fastethernet 0/0
13
In what two ways does SDM differ from the IOS CLI? (Choose two.)
SDM is used for in-band management only. The IOS CLI can be used for in-band and out-of-band management.
SDM is accessed through a Telnet application. The IOS CLI is accessed through a web browser.
SDM is available for all router platforms. The IOS CLI is available for a limited number of Cisco devices.
SDM utilizes GUI buttons and text boxes. The IOS CLI requires the use of text-based commands.
SDM is used for advanced configuration tasks. The IOS CLI is preferred for initial basic device configuration.
14
Which two options must be selected in SDM Express to enable a router serial interface to obtain an IP address automatically? (Choose two.)
Easy IP (IP negotiated)
IP unnumbered
No IP address
HDLC encapsulation
Frame Relay encapsulation
PPP encapsulation
15
What option within Cisco SDM Express must be configured to allow hosts that receive IP address settings from the router to resolve names on the network or Internet?
host name
domain name
DHCP address pool
DNS server IP address
16
What three settings can be made in the SDM Express basic configuration screen? (Choose three.)
host name
DHCP options
domain name
interface IP addresses
enable secret password
DNS server IP addresses
17
A network administrator needs to configure a router. Which of the following connection methods requires network functionality to be accessible?
console
AUX
Telnet
modem
18
A technician has made changes to the configuration of a router. What command will allow the technician to view the current configuration before he saves the changes?
router# show running-config
router# show startup-config
router# show flash
router# show version
19
Which three encapsulation types can be set on a serial interface by an administrator who is using SDM Express? (Choose three.)
ATM
CHAP
Frame Relay
HDLC
PAP
PPP
20
Which three pieces of information about a neighbor device can be obtained by the show cdp neighbors command? (Choose three.)
**platform
routing protocol
**connected interface of neighbor device
**device ID
IP addresses of all interfaces
enable mode password
21
Which command will display routing table information about all known networks and subnetworks?
Router# show ip interfaces
Router# show ip connections
Router# show ip route
Router# show ip networks
22
Refer to the exhibit. Which three sets of commands are required to enable administrators to connect to the Switch1 console over Telnet for configuration and management? (Choose three.)
Switch1(config)# interface fa0/1
Switch1(config-if)# ip address 192.168.2.64 255.255.255.192
Switch1(config)# interface fa0/1
Switch1(config-if)# ip address 192.168.2.66 255.255.255.192
Switch1(config)# interface vlan 1
Switch1(config-if)# ip address 192.168.2.126 255.255.255.192
Switch1(config-if)# no shutdown
Switch1(config)# line vty 0 4
Switch1(config-line)# enable password cisco
Switch1(config-line)# login
Switch1(config)# line vty 0 15
Switch1(config-line)# password cisco
Switch1(config-line)# login
Switch1(config)# ip default-gateway 192.168.2.65
23
To save time, IOS commands may be partially entered and then completed by typing which key or key combination?
Tab
Ctrl-P
Ctrl-N
Up Arrow
Right Arrow
Down Arrow
24
Which command turns on a router interface?
Router(config-if)# enable
Router(config-if)# no down
Router(config-if)# s0 active
Router(config-if)# interface up
Router(config-if)# no shutdown
25
Passwords can be used to restrict access to all or parts of the Cisco IOS. Select the modes and interfaces that can be protected with passwords. (Choose three.)
VTY interface
console interface
Ethernet interface
secret EXEC mode
privileged EXEC mode
router configuration mode
Note: These answers will give you 87.3%. numbers 3,12,24,25 are incorrect.
